Eidsvoll pedestrian bridge in Norway
Project details
Country Norway
Year: 2024
Volume: 44 t
About the project

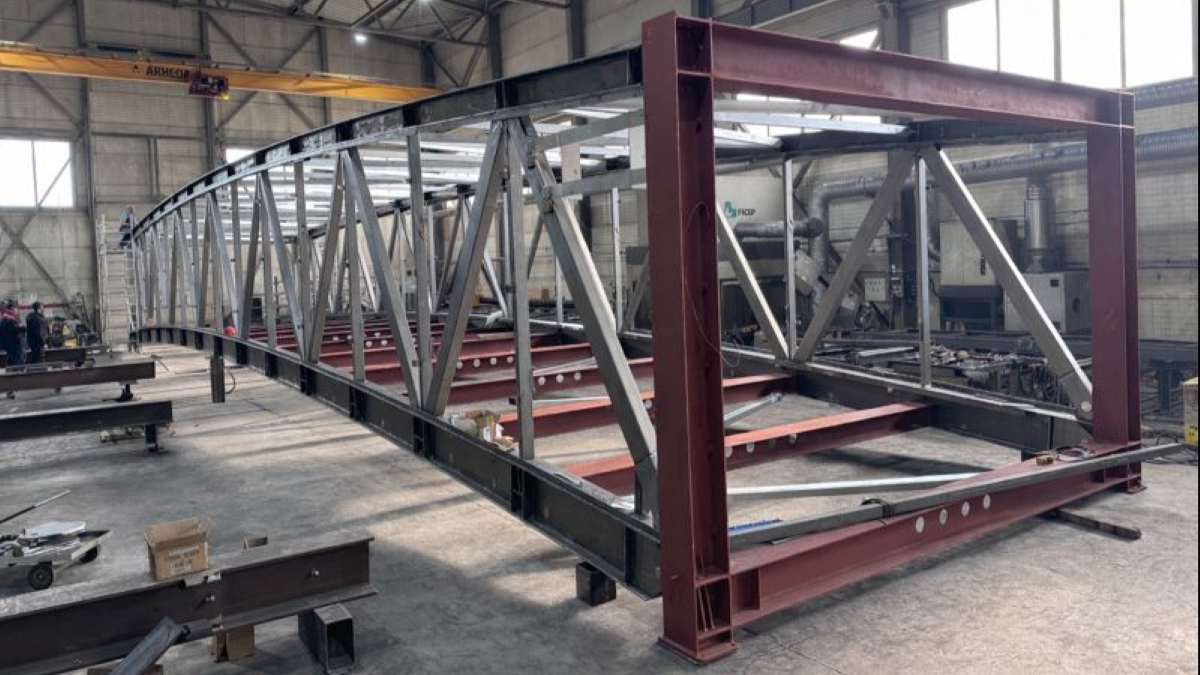

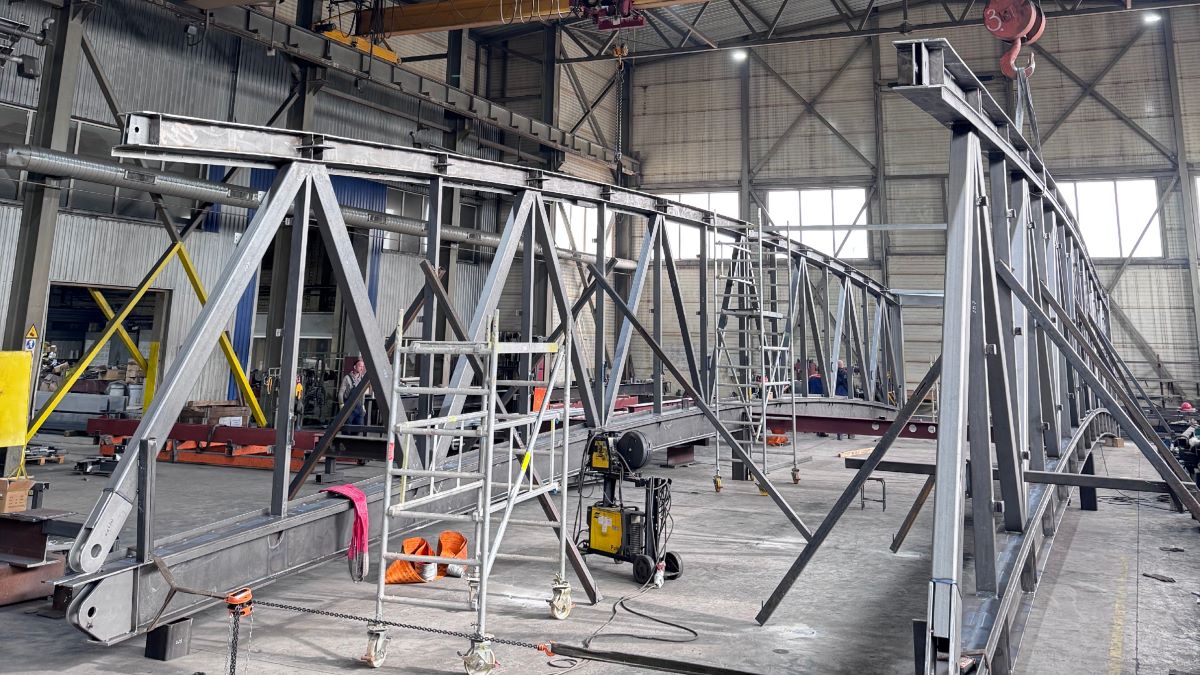

A steel pedestrian bridge with side trusses was manufactured and assembled in the factory. Truss dimensions – 28 m length, 3.5 m height, weight of one truss 8 t. The width of the assembled bridge is 5.7 m, total weight of the structure – 44 t.

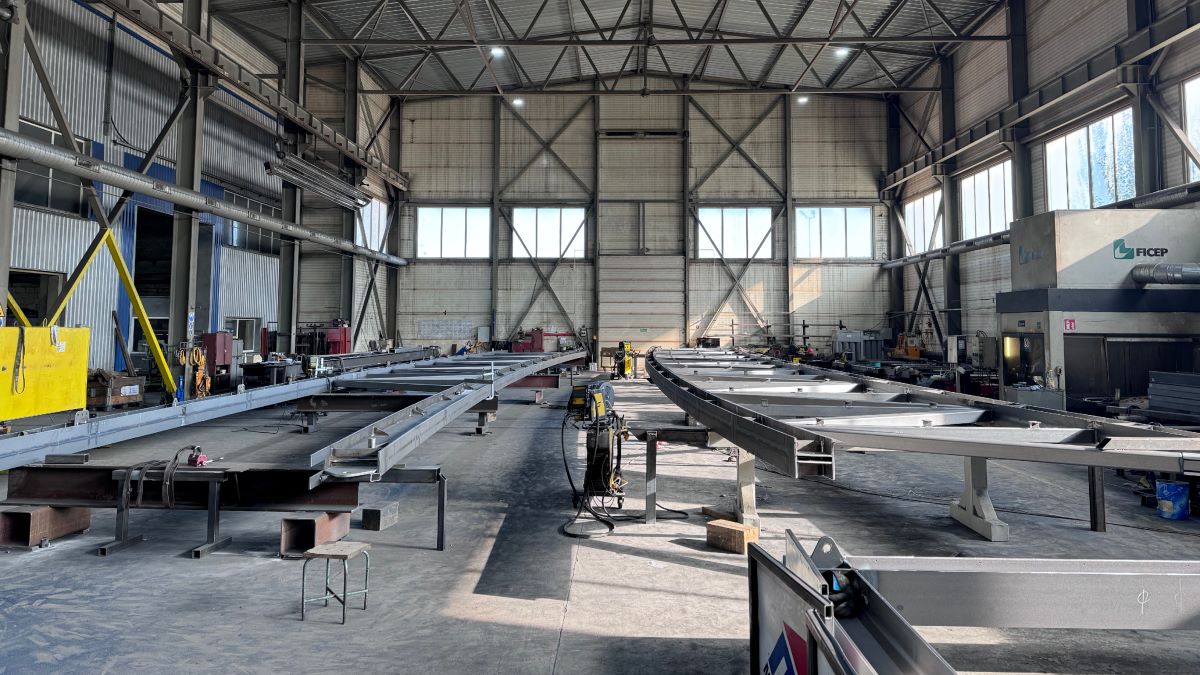

The structure was fully assembled in the factory, the geometry and nodes were checked before transportation to the site. The production was carried out in accordance with EN 1090-2, EXC3, in accordance with Handbook R762, using System 1.
The steel structures were cleaned to Sa 3, metallization and painting were performed, ensuring long-term anti-corrosion protection.
